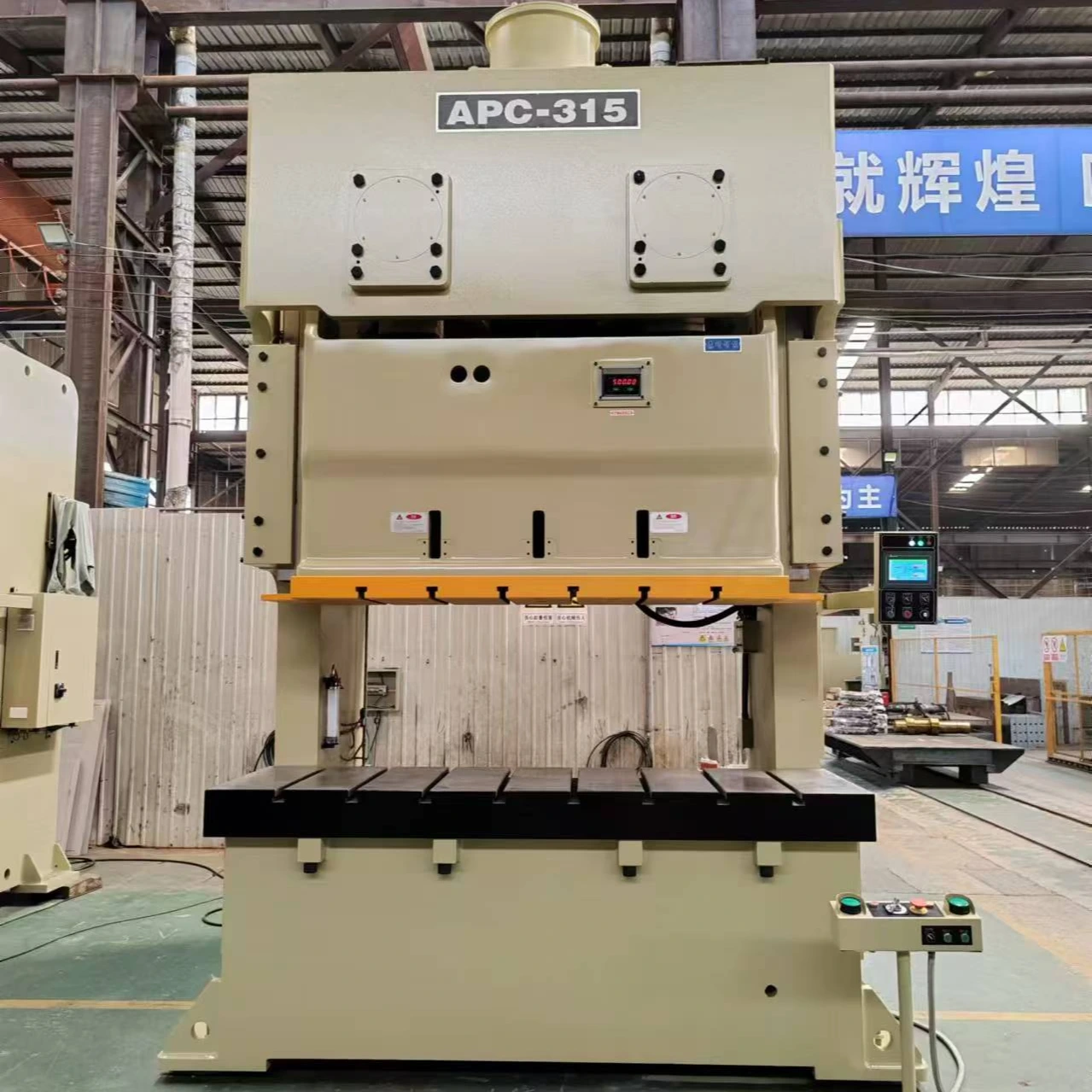

APC Open Type Double Crankshaft High Precision Punch

Features

● To ensure the relative stability of the machine operation, the symmetrical two slide rails and the balancer device design are applied.

● The die precision may be up to 0.1mm and is safe, convenient and reliable.

● The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance.

● Highly sensitive and reliable clutch/brake device and interationally leading double solenoid valve and overload protection device are applied to ensure the accuracy and safety of the operation and stop of the press slide.

● The machine structure is designed reasonably, which is convenient for automatic production, reducing costs and improving efficiency.

● Advanced design concept, low noise, low consumption and energy saving.

Inquiry

Write a Review

Standard Accessories

APC Open Type Double Crankshaft High Precision Punch 3

COMPANY STRENGTH

● Frequency converter
● Touch screen
● Pre-cut counter
● Pre-break counter
● Electronic cam
● Hydraulic overload protection device
● Counter
● Air source connector
● Second degree fall protection device
● Misfeed detection device
● Power outlet
● Maintenance tools and toolbox

1 (33)

● User's manual
● Manual slider adjustment device (≤A1-60)
● Electric slider adjustment device (≥A1-60)
● Mechanical mold height indicator (≤A1-60)
● Electric mold height indicator (2A1-60)
● Slider and mold balancing device
● Crankshaft angle indicator
● Electric grease lubrication device

APC Open Type Double Crankshaft High Precision Punch 5

COMPANY STRENGTH

● Air pressure die pad device
● Foot switch
● Quick die change device(Mold liter,damp or move am)
● Sider upper punching device
● Mold lighting device
● Shockprooffeet
● Photoelectic protection device
● Feeder(air,machinery and NC types)
● Rack
● Leveler
● Manipulator

STANDARD ACCESSORIES

● Frequency converter

● Touch screen

● Pre-cut counter

● Electronic cam

● Hydraulic overload protection device

● Electric slider adjusting device

● Electric mold height indicator

● Electric grease lubrication device

● Slider and mold balance device

● Crankshaft angle indicator

● Counter

● Air source connector

● Second degree fall protection device

● Misfeed detection device

● Power outlet

● Maintenance tools and toolbox

● User's manual

Optional Accessories

● Pneumatic mold pad device

● Foot switch

● Leveler

● Quick die change device (Mold lifter, clamp or move arm)

● Slider upper punching device

● Mold lighting device

● Shockproof feet

● Photoelectric protection device

● Feeder (Air, machinery and NC types)

● Rack

● Manipulator

Technical Parameters

Model		APC-110		APC-160		APC-200		APC-250		APC-315
		V	H	V	H	V	H	V	H	V	H
Capacity	Ton	110		160		200		250		315
Rated Tonnage Point	mm	6	3	6	3	6	3	7	3.5	8	4
Stroke	mm	180	110	200	130	250	150	280	170	280	170
Speed Changing	s.p.m	35-65	50-100	30-55	40-85	25-45	35-70	20-35	30-60	20-35	30-60
Max.Die Hight	mm	400	435	450	485	500	550	550	605	550	605
Slider Adjustment	mm	100		100		120		120		120
Slide Area	mm	1400x500x70		1600x550x70		1850x650x95		2100x700x95		2100x700x95
Bolster Area	mm	1800x650x130		2000x760x150		2400x840x170		2700x900x170		2800x900x190
Main Motor	kwxp	11x4		15x4		18.5x4		22x4		30x4
Air Pressure	kg/cm²	6		6		6		6		6
Press Precision						GB(JIS)1 class
Die Pad Type		Tow plate&two cylinders
Capacity	ton	3.6x2		6.3x2		10x2		14x2		14x2
Die Cushion Stroke Length	mm	70		70		80		100		100
Die Cushion Effective Area	mm	350x235x2 Sets		410x260x2 Sets		540x350x2 Sets		640x470x2 Sets		640x470x2 Sets

Platform

Down Platform

Up Platform
