APE Closed Double Crankshaft High Precision Punch 1

APE Closed Double Crankshaft High Precision Punch 2

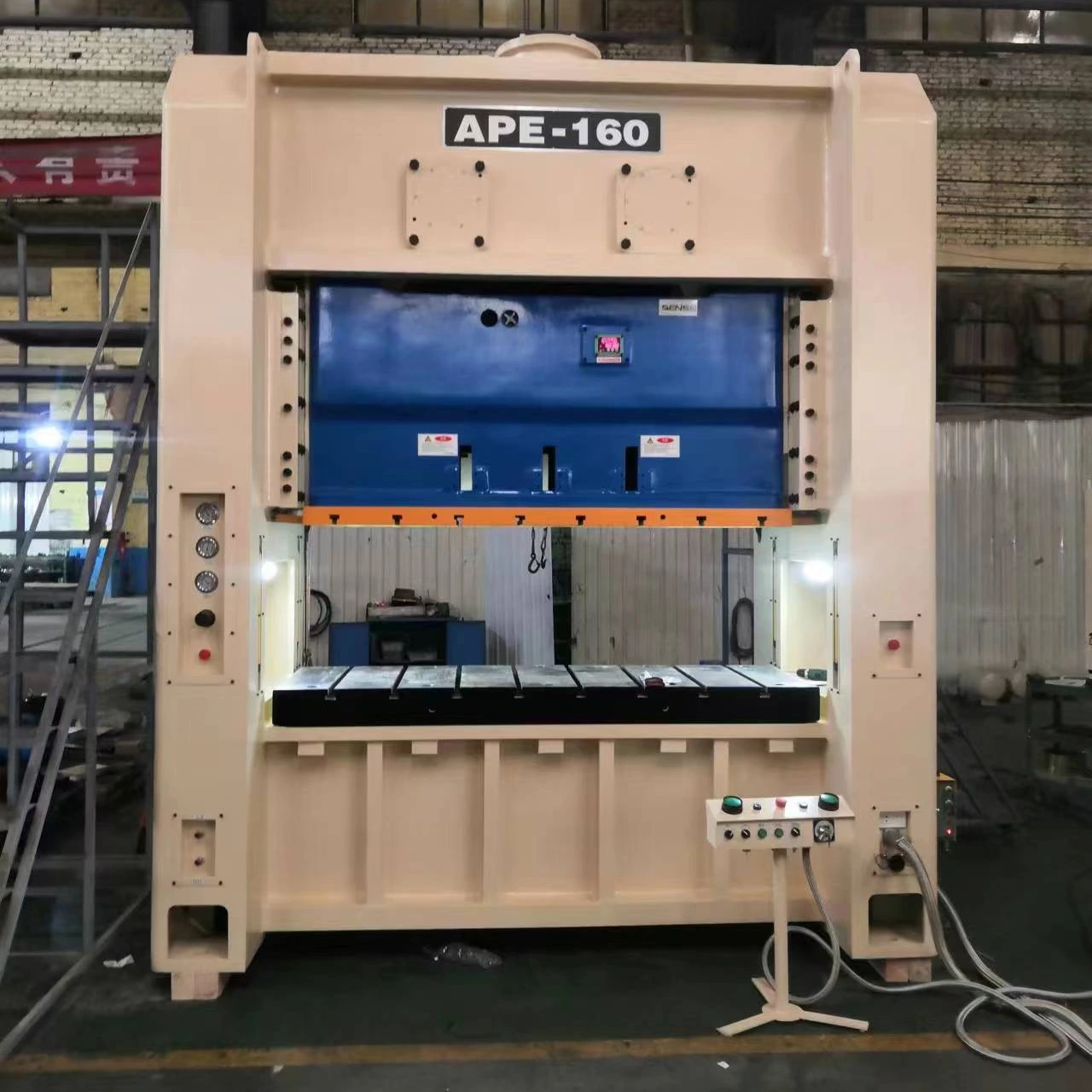

APE Closed Double Crankshaft High Precision Punch

Features

● High-rigidity frame to guarantee long-term stability.

● High-torque pneumatic brake clutch for long life and low maintenance cost, no pollution, low noise, and environmentally friendly.

● High safety, high affinity, multi-function electronic control system.

● Applicable with a variety of automation equipment with easy operation.

Inquiry

Write a Review

Standard Accessories

APE Closed Double Crankshaft High Precision Punch 3

COMPANY STRENGTH

● Frequency converter
● Touch screen
● Pre-cut counter
● Pre-break counter
● Electronic cam
● Hydraulic overload protection device
● Counter
● Air source connector
● Second degree fall protection device
● Misfeed detection device
● Power outlet
● Maintenance tools and toolbox

1 (33)

● User's manual
● Manual slider adjustment device (≤A1-60)
● Electric slider adjustment device (≥A1-60)
● Mechanical mold height indicator (≤A1-60)
● Electric mold height indicator (2A1-60)
● Slider and mold balancing device
● Crankshaft angle indicator
● Electric grease lubrication device

APE Closed Double Crankshaft High Precision Punch 5

COMPANY STRENGTH

● Air pressure die pad device
● Foot switch
● Quick die change device(Mold liter,damp or move am)
● Sider upper punching device
● Mold lighting device
● Shockprooffeet
● Photoelectic protection device
● Feeder(air,machinery and NC types)
● Rack
● Leveler
● Manipulator

STANDARD ACCESSORIES

● Frequency converter
● Touch screen
● Pre-cut counter
● Pre-break counter
● Electronic cam
● Hydraulic overload protection device

● Electric slider adjusting device
● Electric mold height indicator
● Electric grease lubrication device
● Slider and mold balancing device
● Crankshaft angle indicator
● Counter

● Air source connector
● Second degree fall protection device
● Misfeed detection device
● Power outlet
● Maintenance tools and toolbox

● User's manual

Optional Accessories

● Air pressure die pad device

● Foot switch

● Leveler

● Quick die changedevice (Mold lifter,clamp or move arm)

● Slider upper punching device

● Mold lighting device

● Shockproof feet

● Photoelectic protection device

● Feeder (Air,machinery and NC types)

● Rack

● Manipulator

Technical Parameters

Model		APE-110		APE-160		APE-200		APE-250		APE-300		APE-400		APE-500		APE-600
Type		V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H
Capacity	Ton	110		160		200		250		300		400		500		600
Rated Tonnage Point	mm	5	3	6	3	6	3	7	3	7	3	7	3	10		12
Stroke	mm	180	110	200	130	250	150	280	170	300	170	300	170	350	300	350	300
Stable Speed	s.p.m	35-65	50-100	30-55	40-85	20-50	35-70	20-40	30-60	20-35	30-50	20-35	20-40	15-25	20-35	15-25	20-30
Max.Die Hight	mm	400	435	450	485	500	550	550	605	550	615	550	615	600	625	700	725
Slider Adjustment	mm	100		100		120		120		120		120		120		150
Slide Area	mm	1400x500x70		1600x650x70		1850x750x95		2300x900x95		2400x900x95		A2500x1000x95		A2600x1100x100		3400x1100x110
												B 3000x1000x95		B3200x1100x100
												C 3200x1000x95
Bolster Area	mm	1600x650x13		1800x760x150		2200x940x17		2500x1000x170		2500x1000x190		A2700x1100x190		A 2800x1200x220		3600x1200x230
												B3200x1100x190		B 3400x1200x220
												C 3400x1100x190
Lateral Opening	mm	700x450		700x450		900x600		900x600		900x600		900x600		900x600		900x600
Main Motor	kwxp	11x4		15x4		18.5x4		22x4		30x4		37x4		45x4		55x4
Slider Adjust Device	kwxp	1x4		1x4		1x4		2x4		2x4		2x4		3.7x4		5x4
Air Pressure	kg/cm²	6		6		6		6		6		6		6		6
Air Pressure		GB(JIS)1 cass
Max.Die Weight	kg	1000		1200		1500		2000		2000		A	2400	4000		6000
												B	3200
												C
Die Cushion Capacity	ton	3.6x2		6.3x2		10x2		14x2		14x2		14x2		16x2		16x2

Platform

Down Platform

Up Platform
