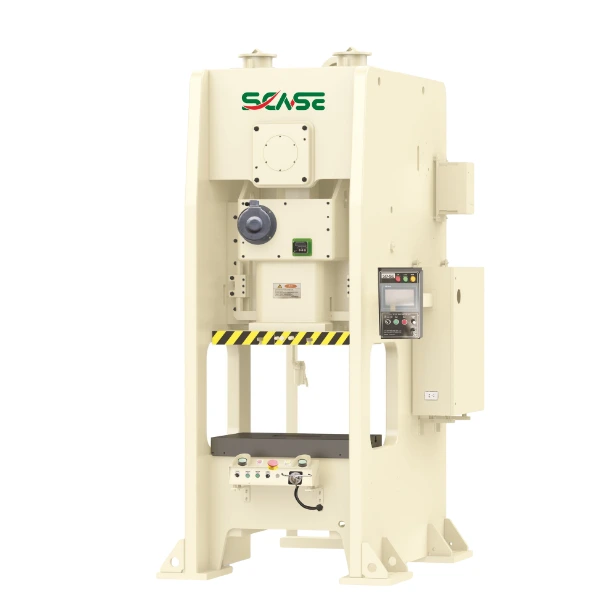

APD Semi-Closed Single Crankshaft High Precision Punch

Features

● High-rigidity frame with long guide rails on the centerline and the support stroke to guarantee long-term dynamic stability precision and extend the service life of the die.

● The bottom area of the press is 15-25% larger than that of the C-type press, enabling the increase of the number of die engineering and improve the added value.

● High-torque pneumatic brake clutch for long life and low maintenance cost, no pollution, low noise, and environmentally friendly.

● High safety, high affinity, multi-function electronic control system.

● Applicable with a variety of automation equipment with easy operation.

Inquiry

Write a Review

Standard Accessories

APD Semi-Closed Single Crankshaft High Precision Punch 2

COMPANY STRENGTH

● Frequency converter
● Touch screen
● Pre-cut counter
● Pre-break counter
● Electronic cam
● Hydraulic overload protection device
● Counter
● Air source connector
● Second degree fall protection device
● Misfeed detection device
● Power outlet
● Maintenance tools and toolbox

1 (33)

● User's manual
● Manual slider adjustment device (≤A1-60)
● Electric slider adjustment device (≥A1-60)
● Mechanical mold height indicator (≤A1-60)
● Electric mold height indicator (2A1-60)
● Slider and mold balancing device
● Crankshaft angle indicator
● Electric grease lubrication device

APD Semi-Closed Single Crankshaft High Precision Punch 4

COMPANY STRENGTH

● Air pressure die pad device
● Foot switch
● Quick die change device(Mold liter,damp or move am)
● Sider upper punching device
● Mold lighting device
● Shockprooffeet
● Photoelectic protection device
● Feeder(air,machinery and NC types)
● Rack
● Leveler
● Manipulator

STANDARD ACCESSORIES

● Pneumatic dry clutch brake

● Touch screen

● Hydraulic overload protection device

● Hand grease lubricating device

● Frequency converter

● Electric slider adjustment device

● Digital mold height display

● Slider and die balancing device

● Electronic rotary cam switch

● Crankshaft angle indicator

● Counter

● Air supply connector

● Second degree fall protection device

● Mainterance tools and toolbox

● User's manual

APD Semi-Closed Single Crankshaft High Precision Punch 7

Optional Accessories

● Wet clutch brake

● Electic grease lubricating device

● Airpressurediepaddevice

● Pre-cut counter

● Pre-break counter

● Foot switch

● Quick die change devioe (Mold liter,clamp or move arm)

● Slider upper punching device

● Misfeed detection device

● Power outet

● Anti-vbration feet

● Feeder (air, machinery and NC types)

● Photoelectic protection device

● Rack

● Leveler

● Manipulator

● Mold lighting devioe

● Left (right) side feeding device

Technical Parameters

Model		APD-80		APD-110		APD-160		APD-200		APD-260		APD-315
		V	H	V	H	V	H	V	H	V	H	V	H
Nominal Force	KN	800		1100		1600		2000		2600		3150
Nominal Force Stroke	mm	4	2	6	3	6	3	6	3	7	3.5	8	3.5
Speed Changing	s.p.m	35-80	80-120	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	30-50
Stroke	mm	150	70	180	80	200	90	200	100	250	150	300	150
Max.Die Hight	mm	340	380	360	410	460	510	460	510	500	550	475	550
Slider Adjustment	mm	80		80		100		110		120		120
Slide Area	mm	560×420×70		650×470×80		700×550×90		850×630×90		950×700×100		1050×750×110
Bolster Area	mm	740×550×90		880×600×110		960×800×140		1120×820×160		1280×840×180		1380×900×200
Main Motor	KwxP	7.5×4		11×4		15×4		18.5×4		22×4		30×4
Slider Adjust Device		Electric
Air Pressure	Kg/cm²	5-6		5-6		5-6		5-6		5-6		5-6
Press Dimension (LxWxH)	mm	1430×1790×2935		1570×1920×3190		1670×2420×3610		1895×2710×4060		2065×2850×4460		2165×2900×4660
Press Precision		GB(JIS)1 class
Die Cushion Capacity	ton	3.6		6.3		10		14		14		14
Die Cushion Stroke Length	mm	70		80		80		100		100		100
Die Cushion Effective Area	mm²	450×310		500×350		650×420		710×480		810×480		810×480

Platform

Down Platform

Up Platform
