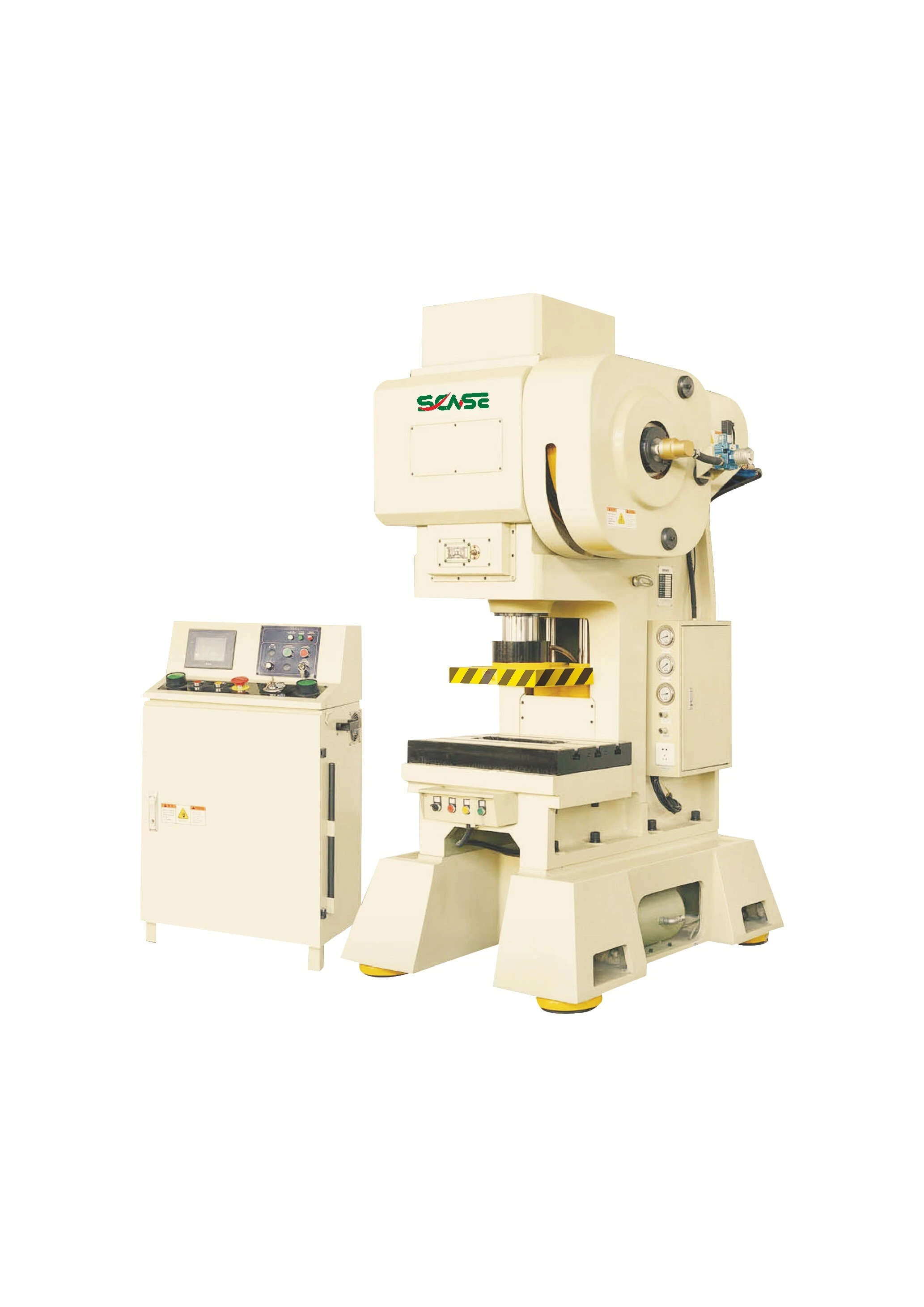

APH Guidecolumn High-Speed Punch

● The frame is made of high-strength cast iron and features a high-precision integrated gantry structure, which prevents the opening of the machine body when under load and enables the processing of high-precision products.

● With double-axis central guidance and four guide columns providing full-length guidance throughout the whole process, excellent punching precision can be maintained even under eccentric loads, and the service life of the press can be prolonged.

● The forced lubrication and oil cooler oil supply system are adopted to minimize thermal deformation, allowing for the processing of high-precision products.

● The excellent dynamic balance device reduces vibrations, endowing the press with optimal precision and stability.

● It is specially equipped with an electric die height adjustment function, combined with a die height indicator, facilitating the adjustment of die height.

● The hydraulic slider locking system keeps the die height unchanged to ensure the requirements of products.

● The man-machine interface is controlled by a microcomputer, with a numerical and fault monitoring system. The operation is convenient as it is displayed on the screen.

Inquiry

Write a Review

Standard Accessories

COMPANY STRENGTH

● Frequency converter
● Touch screen
● Pre-cut counter
● Pre-break counter
● Electronic cam
● Hydraulic overload protection device
● Counter
● Air source connector
● Second degree fall protection device
● Misfeed detection device
● Power outlet
● Maintenance tools and toolbox

1 (33)

● User's manual
● Manual slider adjustment device (≤A1-60)
● Electric slider adjustment device (≥A1-60)
● Mechanical mold height indicator (≤A1-60)
● Electric mold height indicator (2A1-60)
● Slider and mold balancing device
● Crankshaft angle indicator
● Electric grease lubrication device

COMPANY STRENGTH

● Air pressure die pad device
● Foot switch
● Quick die change device(Mold liter,damp or move am)
● Sider upper punching device
● Mold lighting device
● Shockprooffeet
● Photoelectic protection device
● Feeder(air,machinery and NC types)
● Rack
● Leveler
● Manipulator

STANDARD ACCESSORIES

● Mold height indicator

● Manual slider adjustment device

● Hydraulic clamping

● Forced oil circulation device

● Programmable controller PLC

● Slider and mold dynamic balance device

● Touch screen

● Crankshaft angle indicator

● Air source connector(½)

● Air blowing device(½)

● Misfeed detection device

● Toolbox

● User's manual

Optional Accessories

● Anti-vibration device

● Feeder

● Rack

● Leveler

● Dynamic balancing device

● Material lubrication device

● Bottom dead point detector

Technical Parameters

Model		APH-30			APH-45			APH-65			APH-80
		A	B	C	A	B	C	A	B	C	A	B	C
Capacity	Ton	30			45			65			80
Stroke	mm	20	30	40	20	30	40	30	40	50	30	50	60
Speed Changing	s.p.m	200-700	200-600	200-500	200-700	200-600	200-500	200-600	200-500	200-400	200-600	200-500	200-400
Stable	s.p.m	200-900	200-800	200-500	200-800	200-700	200-600	200-700	200-600	200-500	200-700	200-600	200-500
Max.Die Hight	mm	215	210	205	245	240	235	255	250	245	360	350	345
Slider Adjustment	mm	30			30			50			50
Slide Area	mm	330x230			420x320			540x350			600x400
Bolster Area	mm	600x330x80			720x450x90			900x450x100			1000x590x120
Blanking hole		400(up)x300(down)x100(slanting mouth)			450(up)x400(down)x100(slanting mouth)			600(up)x400(down)x100(slanting mouth)			480x120
Motor	kw	4			5.5			11			15
Press Dimension（L×W×H）	mm	2133x1206x1011			2345x1400x1222			2695x1700x1400			1350x1840x2760
Weight	kg	2800			4290			6500			7500
