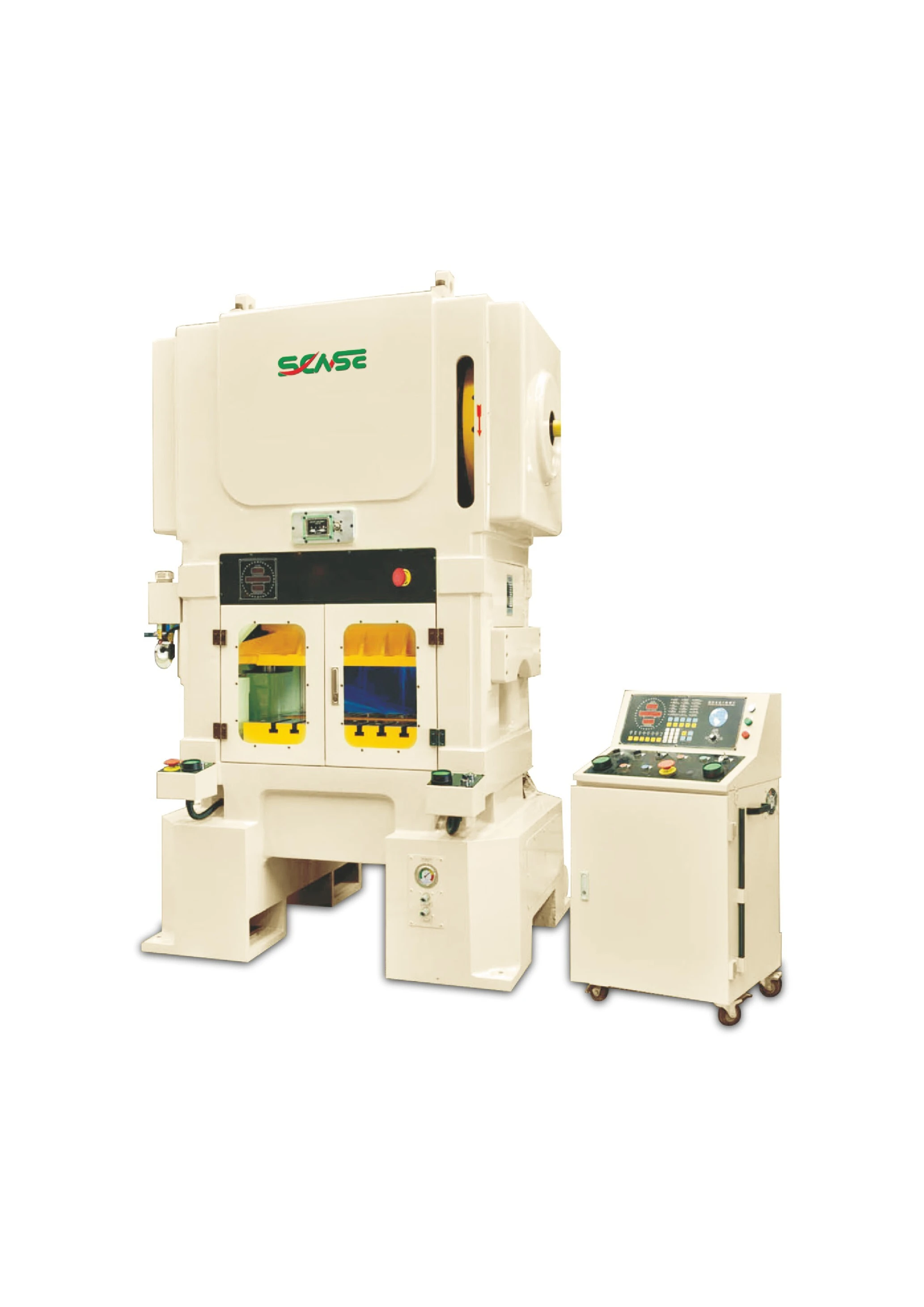

APF High Speed Punch With Four Guide Pillars Punch

● The body is made of high-strength cast iron, and the high precision one-piece gantry structure prevents the opening of the machine body during load and realizes the processing of high-precision products.

● Two-axis center guide, four guide posts full-length guide, so even eccentric load can maintain excellent stamping accuracy and extend the life of the punch.

● The use of forced lubrication and oil cooler oil supply system minimizes thermal deformation and enables high precision product processing.

● Excellent dynamic balance device reduces vibration so that the punch has the best accuracy and stability.

Inquiry

Write a Review

Standard Accessories

APF High Speed Punch With Four Guide Pillars Punch 2

COMPANY STRENGTH

● Frequency converter
● Touch screen
● Pre-cut counter
● Pre-break counter
● Electronic cam
● Hydraulic overload protection device
● Counter
● Air source connector
● Second degree fall protection device
● Misfeed detection device
● Power outlet
● Maintenance tools and toolbox

1 (33)

● User's manual
● Manual slider adjustment device (≤A1-60)
● Electric slider adjustment device (≥A1-60)
● Mechanical mold height indicator (≤A1-60)
● Electric mold height indicator (2A1-60)
● Slider and mold balancing device
● Crankshaft angle indicator
● Electric grease lubrication device

APF High Speed Punch With Four Guide Pillars Punch 4

COMPANY STRENGTH

● Air pressure die pad device
● Foot switch
● Quick die change device(Mold liter,damp or move am)
● Sider upper punching device
● Mold lighting device
● Shockprooffeet
● Photoelectic protection device
● Feeder(air,machinery and NC types)
● Rack
● Leveler
● Manipulator

STANDARD ACCESSORIES

● Mold height indicator

● Manual slider adjustment device

● Hydraulic clamping

● Forced circulating oil device

● Programmable controller PLC

● Slider and mold dynamic balance device

● Crankshaftangle indicator

● Touch screen

● Crankshaft angle indicator

● Air source connector (½)

● Air blowing device (½)

● Misfeed detection device

● Toolbox

● User's manual

● Dynamic balancing device

● Material lubrication device

● Bottom dead point detector

● Anti-vibration device

Optional Accessories

● Feeder

● Rack
● Leveler
● Hydraulic locking teeth
● Oil temperature cooling device
● Electronic cam
● Electronic preset counter
● Electronic cumulative counter
● Mold height indicator
● Air source connector primary circuit
● Adjustable anti-vibration feet (Feeding) Automatic dripping
● Slider balancing device

● Electric slider adjusting device

● Clasp device

● Forced lubrication oil supply device

● Misfeed detection device

● Power socket 24V

Technical Parameters

Model		APF-30				APF-45				APF-65				APF-80	APF-125	APF-160	APF-220	APF-300
Capacity	KN	A	B	C	D	A	B	C	D	A	B	C	D	800	1250	1600	2200	3000
		300				450				650
Stroke	mm	20	25	30	40	20	25	30	40	20	25	30	40	30	30	30	30	30
Rated Tonnage Point	mm	2				2				2				2	2	2	2	2
Speed Changing	s.p.m	200-1000	200-900	200-800	200-600	200-900	200-800	200-700	200-600	200-800	200-600	200-500	200-400	100-350	150-350	150-320	120-300	120-280
Die Height	mm	195-235	192-232	190-230	185-225	230-280	227-277	225-275	220-270	275-325	270-320	265-315	260-310	350	400	400	450	450
Slider Adjustment	mm	40				50				50				30	50	50	50	50
Area of Bolster	mm	650×470				800×550				950×700				1100×700	1400×700	1500×800	1800×900	2000×1000
Area of Slider	mm	620×340				750×380				900×450				1000×450	1400×600	1500×700	1800×750	2000×900
Platform Thickness	mm	110				120				130				140	170	170	190	200
Slider Adjustment Motor	KwxP	7.5×4				11×4				18.5×4				22×4	22×4	30×4	37×4	45×4
Frequency Converter	Kw	11				15				22				30	30	37	45	55
Slider Adjustment Motor	Kwxp	0.75×4				0.75×4				0.75×4				0.75×4	0.75×4	0.75×4	1.1×4	1.5×4
Air Pressure	kg/cm²	5				5				5				5	5	5	5	5
Precision(JIS)		JIS-EXCEEDS CLASS1 JIS

Platform

Down Platform

Up Platform
